CRi 嘉睿能源

輕質柔性單晶太陽能模組

Lightweight Flexible Solar Modules

採用專利封裝結構與高分子材料,免除框架及玻璃,讓太陽能部署在所有結構受限的表面。

Advanced monocrystalline panels designed for corrugated roofs, curved structures, and load-limited buildings.

為什麼選擇 輕質柔性太陽能?

Why Choose Lightweight Flexible Solar?

針對高齡廠房、承重受限、曲面結構與嚴格的法規要求,提供免鑽孔、零漏水風險的唯一解方。

The ultimate solar solution for load-limited roofs, curved structures, and strict net-zero mandates.

破解屋頂承重限制

Overcoming Load Barriers

許多老舊鋼構廠房、大型倉庫屋頂的額外載重限額僅為 5-10 kg/m²。傳統玻璃模組(加鋼架達 15-20 kg/m²)無法通過結構安全技師認證,而 CRi 柔性組件(低於 2.7 kg/m²)可輕鬆過關。

Many older warehouse and factory roofs can only support an additional 5-10 kg/m². Standard glass panels fail weight audits; CRi modules (under 2.7 kg/m²) pass safety codes easily.

免鑽孔 · 零漏水隱憂

Zero Drilling, No Leaks

傳統安裝需在鐵皮浪板上鑽孔固定鋼骨支架,極易導致日後鏽蝕與滲水。CRi 採用氣候級高粘度結構耐候背膠直接黏貼浮貼,完全無損浪板結構與原廠防水防漏保固。

Traditional brackets require roof drilling, causing water leak risks. CRi panels are bonded flat using high-viscosity structural adhesives with zero penetrations.

用電大戶與法規強制趨勢

Global Net-Zero Policies

台灣用電大戶條款強制契約容量大於 5000kW 企業設置 10% 綠能;歐盟 Solar Rooftop Mandate 規定 2026 起新商用建築強制安裝太陽能。輕質柔性組件是舊建物實現法規合規與 ESG 指標的最快路徑。

Taiwan's Green Energy Act mandates heavy energy consumers to install solar; EU's Rooftop Mandate enforces solar on public buildings from 2026. Flexible solar provides the fastest path to ESG compliance.

工程案場專用型 (120W / 310W / 560W)

Project-Scale Series (120W / 310W / 560W)

Portable & Light

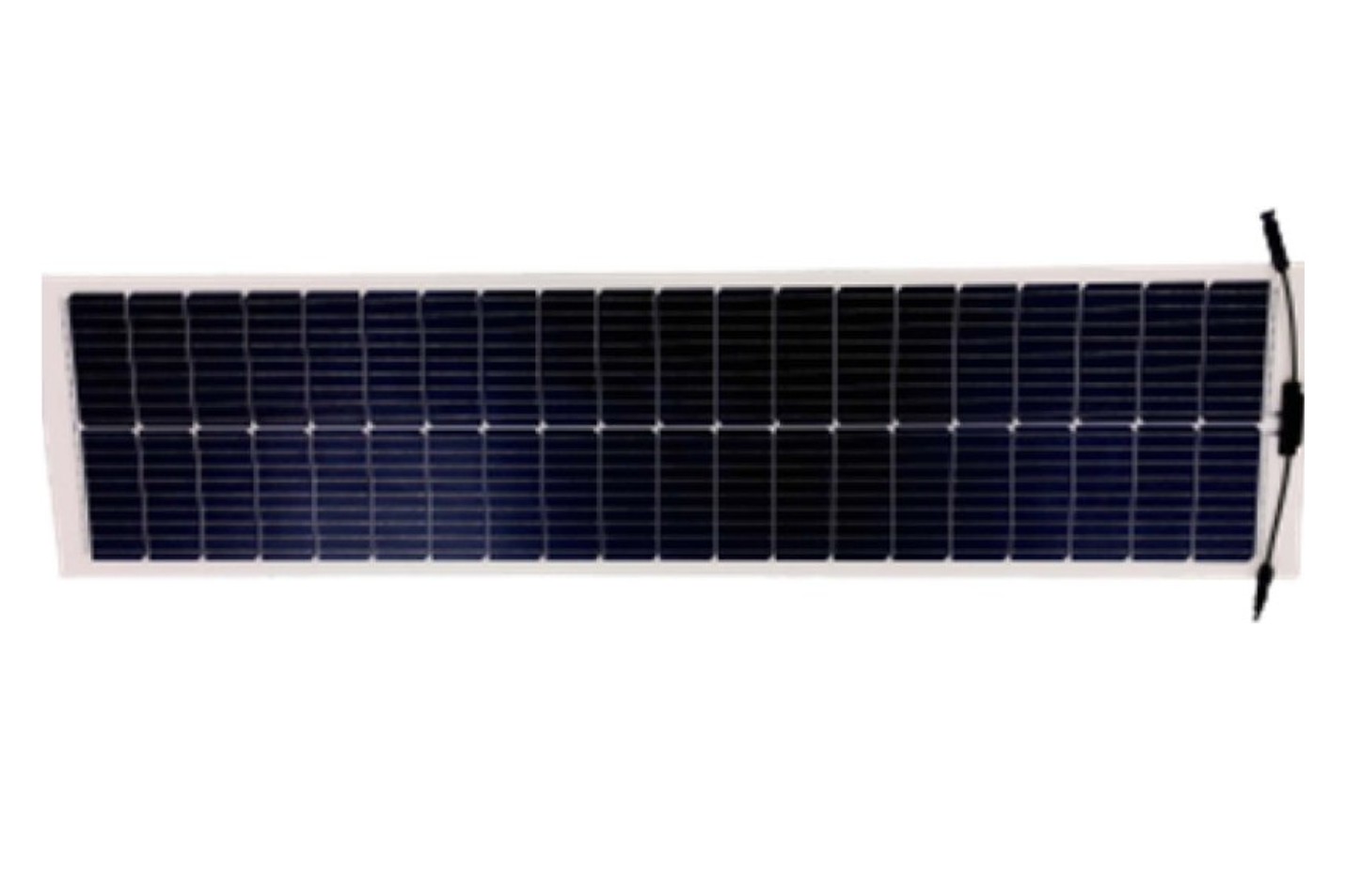

CRi-120W

CRi-120W 輕質可攜型 (WSM-SP-120W)Portable Type (WSM-SP-120W)

適用於移動式載具頂部、露營車及戶外應急通訊設備,實現靈活低風阻部署。

Optimized for small curves, RV rooftops, logistics trucks, and portable emergency power grids.

  • 最大功率 (Pmax):Max Power: 120 W
  • 尺寸與厚度:Dimensions: 1810 × 375 × 2.8 mm
  • 重量與效率:Weight & Eff: 2.3 kg / 21.0% (2.8 kg/㎡)
  • 電氣參數:Electrical: Voc: 27.18V | Vmp: 22.79V | Imp: 5.27A
  • 電池技術:Cell Tech: 單晶 PERC 182 10BBMonocrystalline PERC
  • 品質保固:Warranty: 1年產品保證 / 20年功率保證1-yr Product / 20-yr Power Warranty
BIPV Optimal

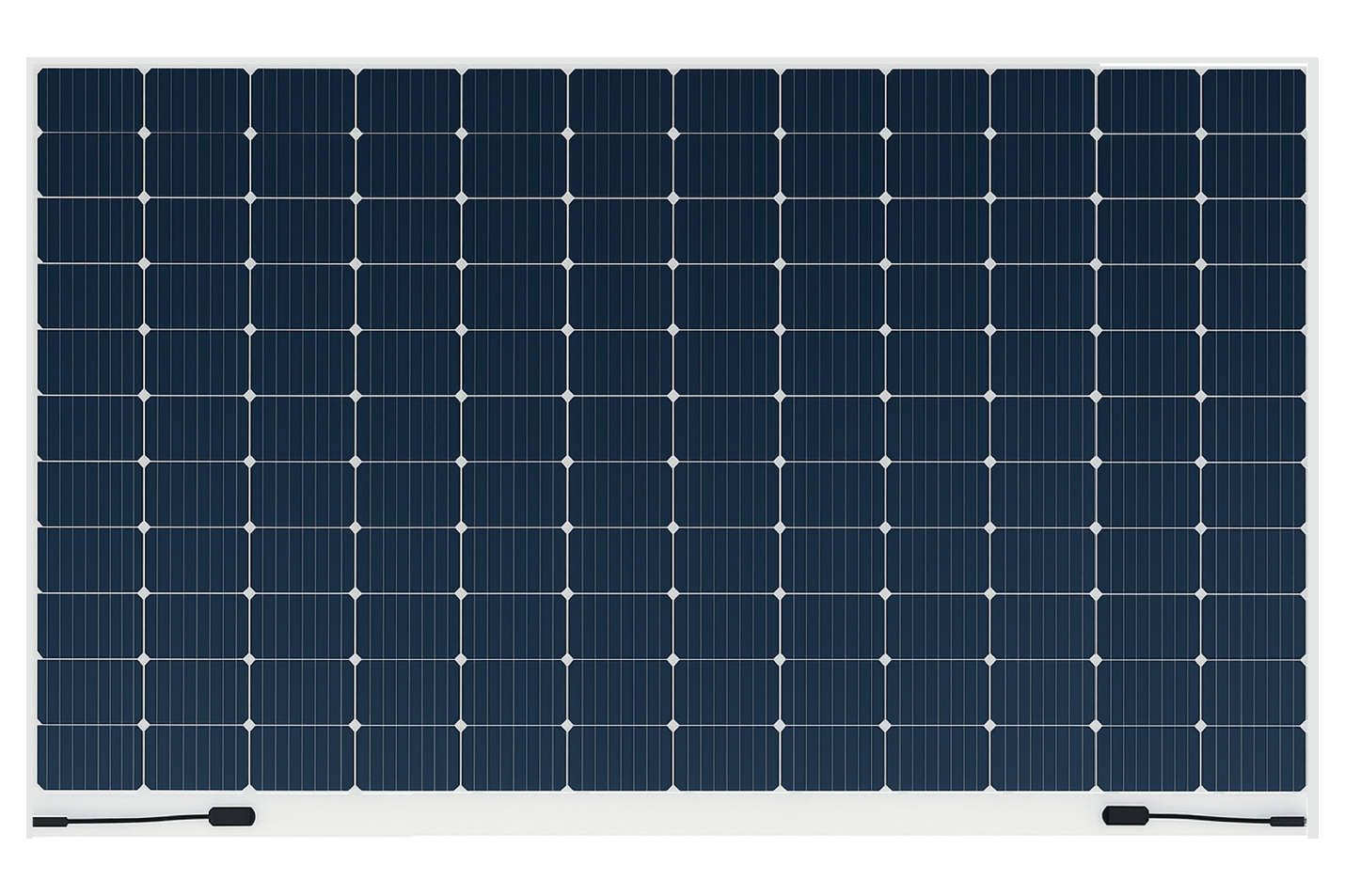

CRi-310W

CRi-310W 中型柔性組件 (WSM-SP-310W)Mid-scale Module (WSM-SP-310W)

專為工廠波形鋼瓦、都市綠化牆體與中小溫室大棚頂部曲線貼合設計。

Designed for corrugated steel sheets, building parapets, and medium curved greenhouse arcs.

  • 最大功率 (Pmax):Max Power: 310 W
  • 尺寸與厚度:Dimensions: 1638 × 991 × 2.8 mm
  • 重量與效率:Weight & Eff: 6.7 kg / 21.0% (4.13 kg/㎡)
  • 電氣參數:Electrical: Voc: 57.5V | Vmp: 49.8V | Imp: 6.4A
  • 電池技術:Cell Tech: 單晶 PERC 182 10BBMonocrystalline PERC
  • 品質保固:Warranty: 1年產品保證 / 20年功率保證1-yr Product / 20-yr Power Warranty

戶外與綠色消費型 (車載輕質板、便攜式摺疊包)

Consumer & Outdoor Series (Vehicle-Mounted & Folding Panels)

Vehicle Solar
CRi-Car Active

CRi-Car Active 車載輕質板 (WSM-SPC 50W/100W)Vehicle Solar (WSM-SPC 50W/100W)

專為露營車頂、冷鏈物流卡車車頂、船舶及特殊載具設計的低風阻柔性板,貼附抗震防抖。

Aerodynamic low-drag flexible panels for RVs, yachts, and cold-chain truck rooftops. Vibration-resistant design.

  • 最大功率:Max Power: 50 W / 100 W
  • 尺寸與厚度:Dimensions: 540×540×3mm / 600×1080×3mm
  • 重量與效率:Weight & Eff: 3.0 kg (50W) / 6.0 kg (100W) | 21.0%
  • 防護與安裝:IP & Mounting: IP68 / 螺絲固定或減震墊貼合Screw or Shock Pad
Folding Solar
CRi-Fold Go

CRi-Fold Go 便攜折疊太陽能包 (WSM-FPC 100W/200W)Folding Solar (WSM-FPC 100W/200W)

整合高防護耐磨面料,輕量摺疊收納。內建多協議輸出接口與提把,隨開隨用。

Durable, splash-proof folding solar bag with built-in smart voltage regulator and USB/DC multi-protocol output ports.

  • 最大功率:Max Power: 100 W / 200 W
  • 收折尺寸 (100W):Folded (100W): 800 × 560 × 25 mm
  • 收折尺寸 (200W):Folded (200W): 800 × 1970 × 25 mm
  • 重量與接口:Weight & Ports: 3.5kg / 6.0kg | USB / XT / DC / Type-C

輕質柔性太陽能 vs 傳統剛性玻璃太陽能

Flexible Solar vs Traditional Glass Solar

比較維度Dimension CRi 輕質柔性單晶模組CRi Lightweight Flexible Module 傳統剛性玻璃模組Traditional Rigid Glass Module
重量密度 (含鋼架)Weight Density < 2.7 kg/㎡ (極薄貼合)< 2.7 kg/㎡ 15 - 20 kg/㎡ (厚重偏高)15 - 20 kg/㎡
安裝工法與開孔Installation Method 氣候級結構膠直接黏貼,免開孔不傷屋頂Direct adhesive bonding, zero roof drilling 打孔固定重型金屬支架,具漏水生鏽風險Mechanical brackets, roof drilling required
耐風能力與風壓Wind Load Resistance 組件貼合浪板無間隙,無迎風面,抗風力強Laminated flat, zero wind uplift profile 架高安裝迎風面大,需重型水泥壓重塊抗颱High wind sail effect, requires concrete ballast
漏水風險控管Water Leakage Risk 0 漏水風險 (不鑽孔無鑽孔老化隱憂)Zero leak risk (frameless overlay) 高風險 (穿孔處橡膠墊片老化易導致滲漏)High risk (screw seal degradation over time)
特殊表面適配度Surface Adaptability 彎曲半徑小至 0.5m,完美契合曲面、垂直牆體Bending radius down to 0.5m, fits curves & walls 剛硬無法彎曲,僅適用於平整無障礙表面Rigid glass structure, restricted flat setup
老舊屋頂免建使照Structural Code Compliance 極低荷重免除老舊鋼構重新建照或補強審查Light weight passes structural checks instantly 重量過載通常要求重作結構鑑定或補強工程Heavy loads force expensive roof reinforcement
獨家舊電站改造技術 (Overlay Repower)
Exclusive Overlay Repowering

失效模組原地「直接覆貼」

Direct Overlay Retrofitting

針對運行超過 10 年、效率退化至 10-12% 的舊光電站,CRi 舊電站改造工法 不需拆卸原鋼架與舊面板。直接使用氣候膠將 560W 輕質板覆貼貼合於舊玻璃板上,省去重型施工、舊板報廢及回收清運費用,發電功率原地躍升 2 倍以上,將老舊電站轉變為高效率綠色資產。

Overlay CRi flexible solar panels directly onto degraded rigid panels. Cuts down scrap processing costs and doubles plant yield immediately.

改造示意 (Overlay Method)
Overlay Retrofitting Diagram
舊剛性面板 (衰退剩10%功率) Degraded Rigid Panel
專用結構耐候背膠Weather-Proof Adhesive
CRi 560W 輕質模組 (疊加後發電原地翻倍!) CRi 560W Flexible Panel Overlay
前往估算我的光電效益 Go to Sizing Calculator 下載產品規格書 (PDF) Download Datasheet (PDF)
